前提條件

1. 已開通云容器引擎，至少有一個云容器引擎集群實例。產品入口：云容器引擎。
2. 開通天翼云服務網格實例。

操作步驟

創建測試命名空間

kubectl create ns foo

打開sidecar自動注入

kubectl label ns foo istio-injection=enabled

部署sleep和httpbin應用

apiVersion: v1
kind: ServiceAccount
metadata:
  name: sleep
---
apiVersion: v1
kind: Service
metadata:
  name: sleep
  labels:
    app: sleep
    service: sleep
spec:
  ports:
  - port: 80
    name: http
  selector:
    app: sleep
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sleep
spec:
  replicas: 1
  selector:
    matchLabels:
      app: sleep
  template:
    metadata:
      labels:
        app: sleep
    spec:
      terminationGracePeriodSeconds: 0
      serviceAccountName: sleep
      containers:
      - name: sleep
        image: registry-vpc-crs-huadong1.cnsp-internal.daliqc.cn/library/curl
        command: ["/bin/sleep", "infinity"]
        imagePullPolicy: IfNotPresent
        volumeMounts:
        - mountPath: /etc/sleep/tls
          name: secret-volume
      volumes:
      - name: secret-volume
        secret:
          secretName: sleep-secret
          optional: true
---

部署外部授權服務

apiVersion: v1
kind: Service
metadata:
  name: ext-authz
  labels:
    app: ext-authz
spec:
  ports:
  - name: http
    port: 8000
    targetPort: 8000
  - name: grpc
    port: 9000
    targetPort: 9000
  selector:
    app: ext-authz
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ext-authz
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ext-authz
  template:
    metadata:
      labels:
        app: ext-authz
    spec:
      containers:
      - image: registry-vpc-crs-huadong1.cnsp-internal.daliqc.cn/library/ext-authz:1.16.2
        imagePullPolicy: IfNotPresent
        name: ext-authz
        ports:
        - containerPort: 8000
        - containerPort: 9000
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: httpbin
---
apiVersion: v1
kind: Service
metadata:
  name: httpbin
  labels:
    app: httpbin
    service: httpbin
spec:
  ports:
  - name: http
    port: 8000
    targetPort: 80
  selector:
    app: httpbin
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: httpbin
spec:
  replicas: 1
  selector:
    matchLabels:
      app: httpbin
      version: v1
  template:
    metadata:
      labels:
        app: httpbin
        version: v1
    spec:
      serviceAccountName: httpbin
      containers:
      - image: registry-vpc-crs-huadong1.cnsp-internal.daliqc.cn/library/httpbin
        imagePullPolicy: IfNotPresent
        name: httpbin
        ports:
        - containerPort: 80

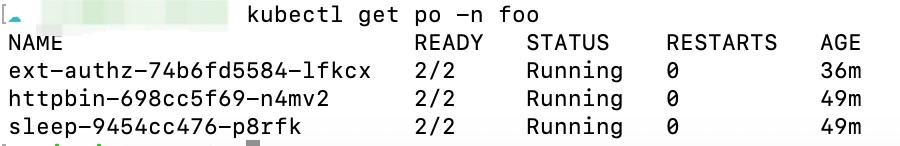

部署完成后，在foo命名空間下看到3個服務

不使用授權策略的情況下，驗證從sleep應用訪問httpbin應用沒有被攔截（返回狀態碼200）：

kubectl exec "$(kubectl get pod -l
app=sleep -n foo -o jsonpath={.items..metadata.name})" -c sleep -n foo --
curl //httpbin.foo:8000/ip -s -o /dev/null -w "%{http_code}\n"

200

查看外部授權服務已經啟動，HTTP和gRPC授權服務分別監聽8000和9000端口：

kubectl logs "$(kubectl get pod -l
app=ext-authz -n foo -o jsonpath={.items..metadata.name})" -n foo -c
ext-authz

2023/08/14 11:26:54 Starting HTTP server at
[::]:8000

2023/08/14 11:26:54 Starting gRPC server at
[::]:9000

添加外部授權服務

將上面的HTTP和gRPC服務添加到服務網格的外部授權服務內。

定義授權策略&驗證訪問

定義如下授權策略，對httpbin應用的/headers路徑的請求將被轉發到第三方授權服務進行驗證：

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: ext-authz
spec:
  selector:
    matchLabels:
      app: httpbin
  action: CUSTOM
  provider:
    # The provider name must match the extension provider defined in the mesh config.
    # You can also replace this with sample-ext-authz-http to test the other external authorizer definition.
    name: sample-ext-authz-grpc
  rules:
  # The rules specify when to trigger the external authorizer.
  - to:
    - operation:
        paths: ["/headers"]

從sleep應用請求httpbin的/headers路徑，由于請求頭帶了"x-ext-authz:deny"，請求被攔截：

kubectl exec "$(kubectl get pod -l app=sleep -n foo -o jsonpath={.items..metadata.name})" -c sleep -n foo -- curl "//httpbin.foo:8000/headers" -H "x-ext-authz: deny" -s
denied by ext_authz for not found header `x-ext-authz: allow` in the request

修改請求，帶上"x-ext-authz: allow"頭部，請求放行：

kubectl exec "$(kubectl get pod -l app=sleep -n foo -o jsonpath={.items..metadata.name})" -c sleep -n foo -- curl "//httpbin.foo:8000/headers" -H "x-ext-authz: allow" -s

{
  "headers": {
    "Accept": "*/*",
    "Host": "httpbin.foo:8000",
    "User-Agent": "curl/8.2.1",
    "X-B3-Parentspanid": "eb42a8165099e7db",
    "X-B3-Sampled": "1",
    "X-B3-Spanid": "cd6540ba1cfd9e8c",
    "X-B3-Traceid": "e7e15cc10dc66630eb42a8165099e7db",
    "X-Envoy-Attempt-Count": "1",
    "X-Ext-Authz": "allow",
    "X-Ext-Authz-Additional-Header-Override": "grpc-additional-header-override-value",
    "X-Ext-Authz-Check-Received": "source:{address:{socket_address:{address:\"10.1.0.25\"  port_value:37654}}  principal:\"spiffe://cluster.local/ns/foo/sa/sleep\"}  destination:{address:{socket_address:{address:\"10.1.0.24\"  port_value:80}}  principal:\"spiffe://cluster.local/ns/foo/sa/httpbin\"}  request:{time:{seconds:1692015383  nanos:990298000}  http:{id:\"7462237371770661564\"  method:\"GET\"  headers:{key:\":authority\"  value:\"httpbin.foo:8000\"}  headers:{key:\":method\"  value:\"GET\"}  headers:{key:\":path\"  value:\"/headers\"}  headers:{key:\":scheme\"  value:\"http\"}  headers:{key:\"accept\"  value:\"*/*\"}  headers:{key:\"user-agent\"  value:\"curl/8.2.1\"}  headers:{key:\"x-b3-sampled\"  value:\"1\"}  headers:{key:\"x-b3-spanid\"  value:\"eb42a8165099e7db\"}  headers:{key:\"x-b3-traceid\"  value:\"e7e15cc10dc66630eb42a8165099e7db\"}  headers:{key:\"x-envoy-attempt-count\"  value:\"1\"}  headers:{key:\"x-ext-authz\"  value:\"allow\"}  headers:{key:\"x-forwarded-client-cert\"  value:\"By=spiffe://cluster.local/ns/foo/sa/httpbin;Hash=c32db24acfa670a8bbe46f0897ebb70b9ccc0e630ee32afcd1ec037d6616e6c5;Subject=\\\"\\\";URI=spiffe://cluster.local/ns/foo/sa/sleep\"}  headers:{key:\"x-forwarded-proto\"  value:\"http\"}  headers:{key:\"x-request-id\"  value:\"aba7b68c-6bee-9d58-b163-7454075c6ece\"}  path:\"/headers\"  host:\"httpbin.foo:8000\"  scheme:\"http\"  protocol:\"HTTP/1.1\"}}  metadata_context:{}",
    "X-Ext-Authz-Check-Result": "allowed",
    "X-Forwarded-Client-Cert": "By=spiffe://cluster.local/ns/foo/sa/httpbin;Hash=c32db24acfa670a8bbe46f0897ebb70b9ccc0e630ee32afcd1ec037d6616e6c5;Subject=\"\";URI=spiffe://cluster.local/ns/foo/sa/sleep"
  }
}
